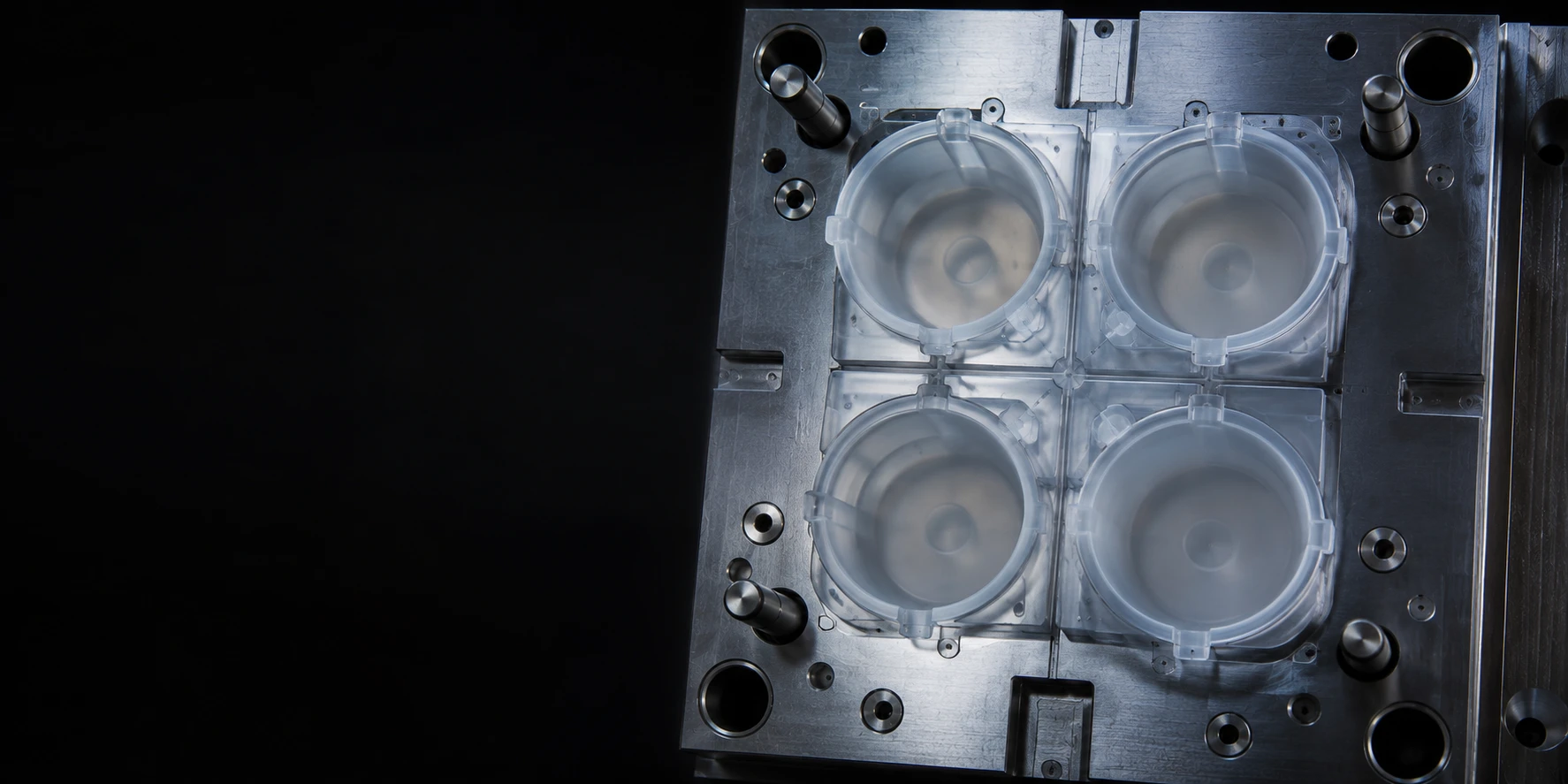

Custom Silicone Mold Maker & Tooling Design: High-Precision LSR & Compression Engineering
Tailored Custom Silicone Mold Maker & Tooling Design: High-Precision LSR & Compression Engineering
For Your Brand
At Yushineon, we translate complex industrial designs into flawless silicone realities.
Specializing in both High-Precision Liquid Silicone Rubber (LSR) Injection Tooling and Heavy-Duty Solid Silicone Compression Molds, our engineering-led facility eliminates the structural supply chain compromises common in generic workshops.
Every tooling project undergoes a rigorous DFM (Design for Manufacturability) review to optimize parting lines, venting, and gating systems before steel cutting. Backed by advanced CNC and EDM machining capabilities, we guarantee micron-level tolerances (±0.02mm to ±0.05mm) and extended mold lifespans (up to 300,000+ cycles for hardened steel), ensuring your beauty, sports, or pet supplies maintain pristine cosmetic finish and zero-compromise structural integrity from T1 sample to millions of runs.
Service Showcase
Customization Procedure
A streamlined, transparent mold tooling and engineering workflow designed to bring your product vision to life, ensuring precision at every stage.
-
01
Phase 1: 3D Design Checking or Creating the 3D design based on 2D file
Normally buyer offer the 3D design file (.stp/.step) to us, we will check the design. If there is no 3D design, only design concept or 2D drawing, our designer team could create the 3D design, it only cost $300 to $500 normally. The whole design details would pass the tests, such as F963, CPC etc.
-
02
Phase 2: Engineering DFM & Design Evaluation
Within 24-48 hours of document intake, our engineering team executes a comprehensive Design for Manufacturability (DFM) analysis. We simulate material flow, optimize parting lines, and position gates to eliminate visible flash and cosmetic defects on your silicone parts
-
03
Phase 3: Sample Mold Process
After design confirm, better to create the sample mold for checking the structure, function, materials, tests etc. Sample mold costs about $300 to $1000 based on different products, it could help on checking before creating the bulk mold. Besides, if not satisfied with the exist design, you could modify the design again to make sure a good product.
-
04
Phase 4: Bulk Mold Ultra-Precision Tooling & CNC Machining

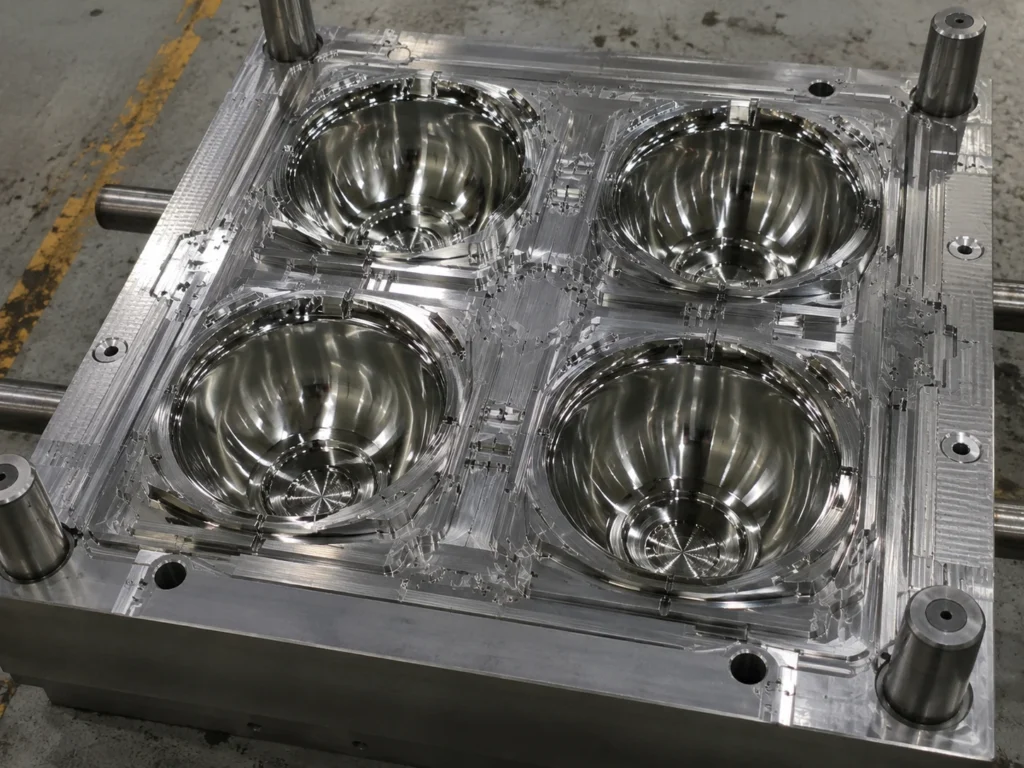

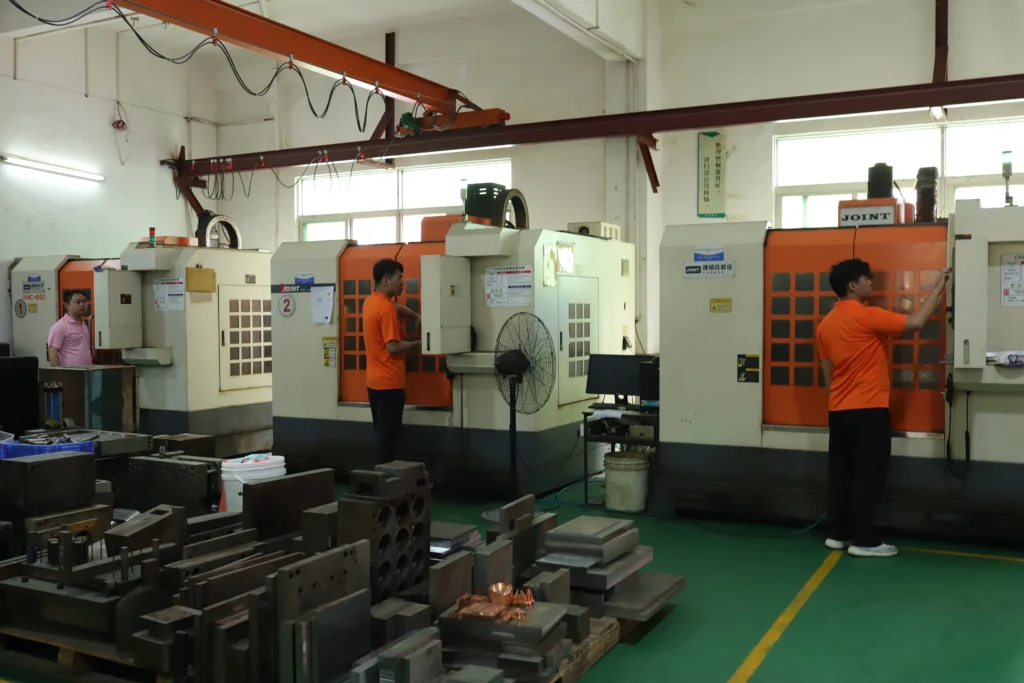

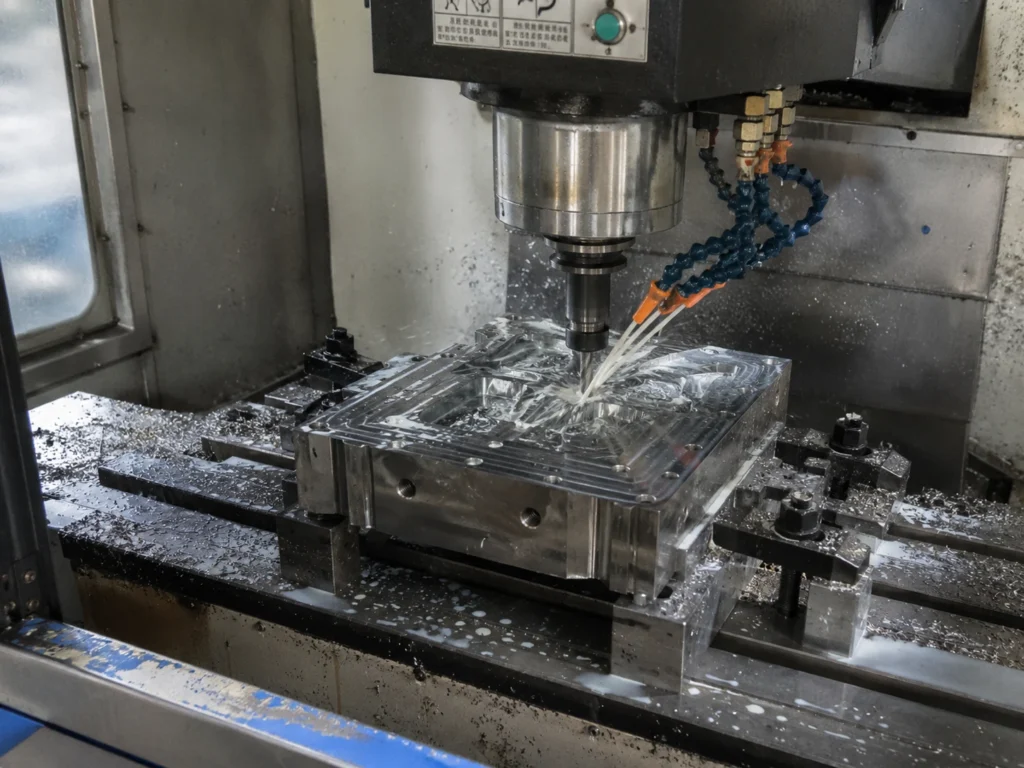

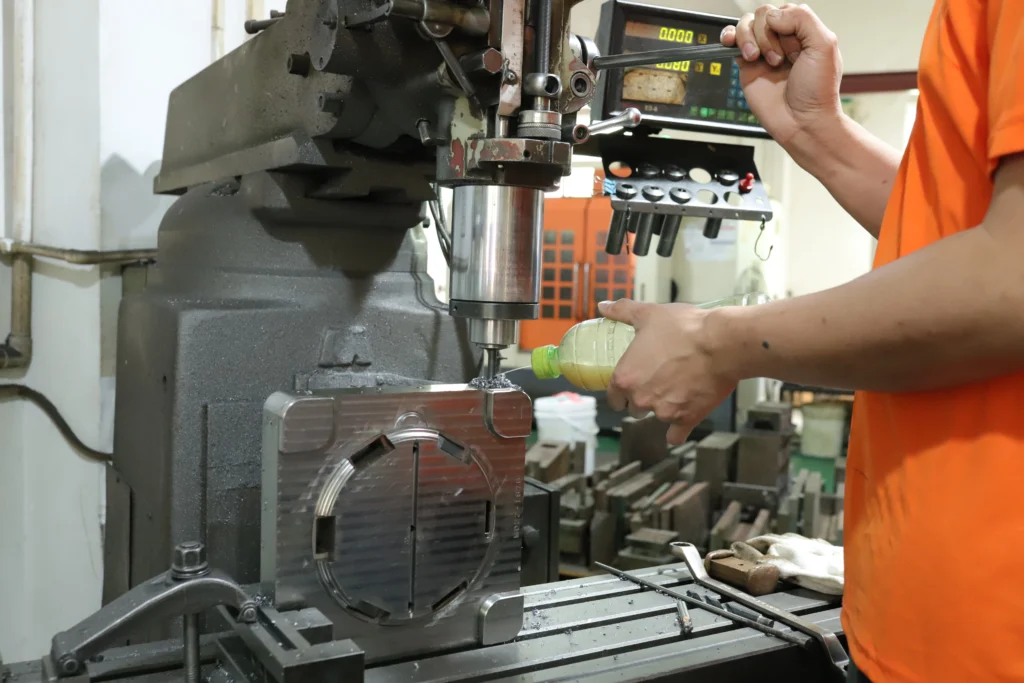

Utilizing hardened mold steel (S136, or P20 based on volume expectations), our CNC and EDM (Electrical Discharge Machining) centers carve the tool cores. This phase guarantees the micro-precision tolerances required for complex beauty tools and watertight outdoor gear.
-
05
Phase 5: T1 Prototyping & Parameter Tuning
We run the initial trial (T1) on our injection or compression molding machines. These first physical samples are meticulously measured against your 2D blueprints using advanced optical measuring systems to calibrate shrink rates and material curing parameters.
-
06
Phase 6: Pre-production Sample Sign-Off & SIP QC Validation and Bulk Production
The finalized prototype undergoes full Standard Inspection Procedures (SIP). Upon your physical or digital sign-off of the "Pre-production Sample," the tooling is locked, qualified, and prepared for high-velocity mass production or secure export.
Production Time Reference
Transparent timelines so you can plan your product launch with confidence.
| # | Process | Production Time |
|---|---|---|
| 01 | Solid Compression Prototype Tooling | 10 - 15 Calendar Days |
| 02 | Mass-Production Compression Tooling | 25 - 30 Calendar Days |
| 03 | Precision LSR Injection Tooling | 50 - 55 Calendar Days |
* Timelines are estimates and may vary based on order complexity, quantity, and customization requirements.
Documents Needed To Get Started
To ensure a smooth and efficient OEM/ODM process, please prepare the following documents before initiating your project. This helps us provide an accurate quote and timeline.
-
3D design(.stp/.step file)
-
2D Technical Drawings
-
Signed NDA
Ready to Transform Your Blueprints into Flawless Custom Steel Tooling?
Upload your 3D files (STP, STEP, or IGS). Our engineering team will review your specifications under strict NDA and provide a comprehensive DFM report and tooling quote within 24 hours.
- 100% full inspection -- every unit, every order
- B2B inquiries responded to within 24 hours
- ISO9001 certified · LFGB · FDA · REACH · CE compliant
